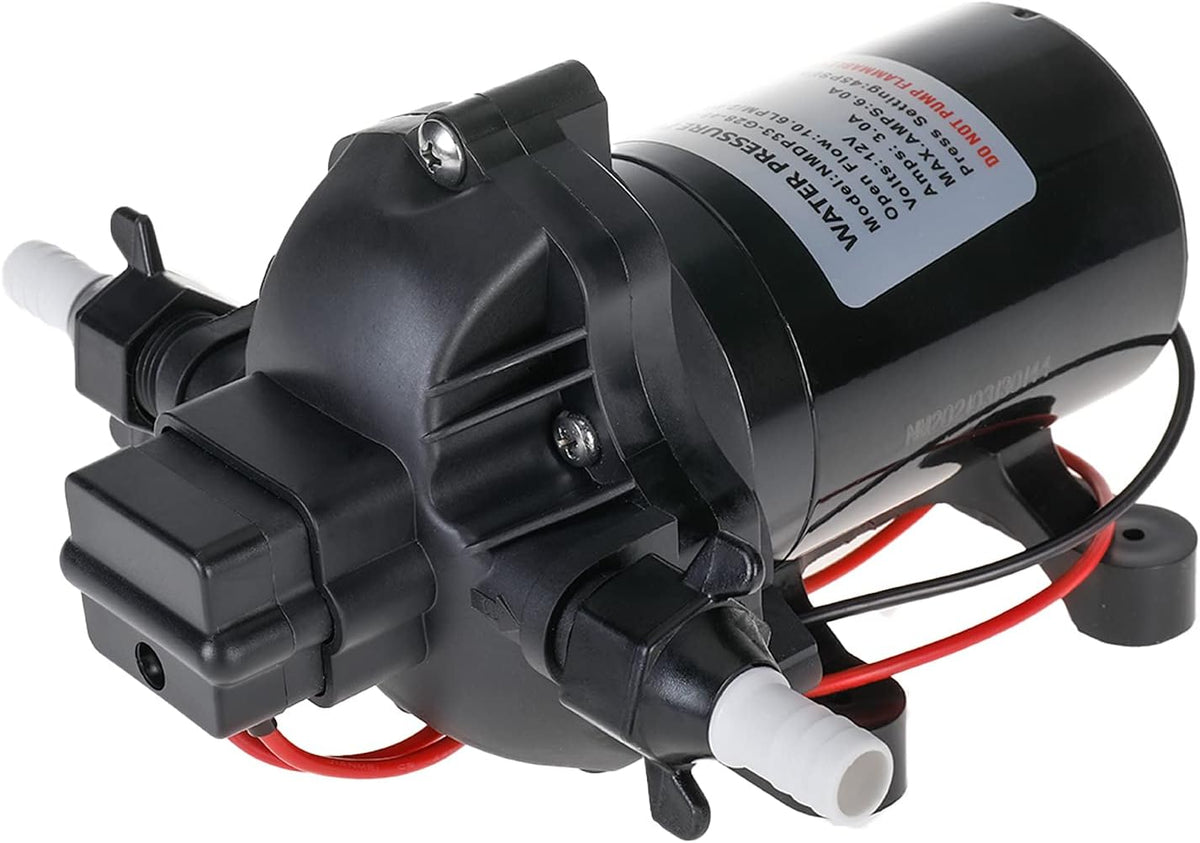

12V Water Pressure Diaphragm Pump 10.6 L/min 2.8 Gpm 45 Psi L958749
12V Water Pressure Diaphragm Pump 10.6 L/min 2.8 Gpm 45 Psi L958749
The Water Pressure Diaphragm Pump design delivers smooth, consistent flow at all ranges of operation, while drawing low current.
The balanced motor design incorporates precision ball bearings for long life, motor is equipped with an integral thermal breaker. Self-priming pumps have sealed switches and are finished with a Electro Coating to inhibit corrosion.
Marine water Pressure pumps are enclosed to prevent incidental moisture from entering and when installed correctly, provide years of quiet operation.
Parameter: 12 volts, 2.8 gallons/minute (10.6 LPM), 35 pounds per square inch.Hose Outlets: Fixed 10mm (3/8') diam.
Applicatins : For Yacht / RV/Caravan pressurized water system; Sprayer fixtures (Vehicle-mounted sprayers, electric sprayer); Clean machine, Humidifier, Water purification, Medical apparatus; Food beverage filling & liquid transfer; Any other pressurization system.
The pumps are self-priming, can run dry without damage, and are performance reliable and low current. This automatic demand water system pump has a built-in pressure switch which automatically starts and stops the pump when the faucet is opened and closed. They are easy to install service and winterize.
Technical Specifications
1) Voltage: 12 VDC
2) Max Flow rate: 10.6lpm (2.8gpm)
3) Max Pressure: 45psi (3.1bar)
4) Hose Outlets: Fixed 10mm (3/8') diam. hose tails, Current Draw: 3 Amp (max.6 Amp)
5) Protection: pressure switch protection: pressure-off protection or circumfluence switch protection. For the powered control you can choose pump without pressure protection.
6) Duty Cycle: Intermittent (under different pressure the continuous working time will also be different)
Applicatins For:
Yacht / RV/Caravan pressurized water system
Sprayer fixtures (Vehicle-mounted sprayers, electric sprayer)
Clean machine, Humidifier, Water purification, Medical apparatus
Food beverage filling & liquid transfer Any other pressurization system.
